PCB Layout Design
We make our PCB lay low in order for your product to shine...

Effective PCB Layout Design

With more than 20 years of experience in PCB layout design and a good knowledge in manufacturing constraints, we guaranty you the most efficient PCB layout services. Our knowledge in PCB layout covers most customers’ need starting from the simplest design (single sided PCB) to the more complex ones (High density, multilayer layout). Our PCB layouts are of course designed according the industry recognised IPC standards.

PCB Layout Design

PCB layout Expertise:

  • Rigid PCB, FPC and Rigid-flex designs
  • Impedanced Controlled routing
  • Multi layers PCB designs (2-16 layers)
  • High-speed layout (DDR memory, 10/100/1000Mbps Gigabit Ethernet...)
  • Simple to high density layout (BGA, blind/buried vias)
  • PCB stack-up definition & configuration
  • Mid-Range EDA Expert: Altium, Zuken(Cadstar/eCadstar)
  • PDF export of the PCB layout

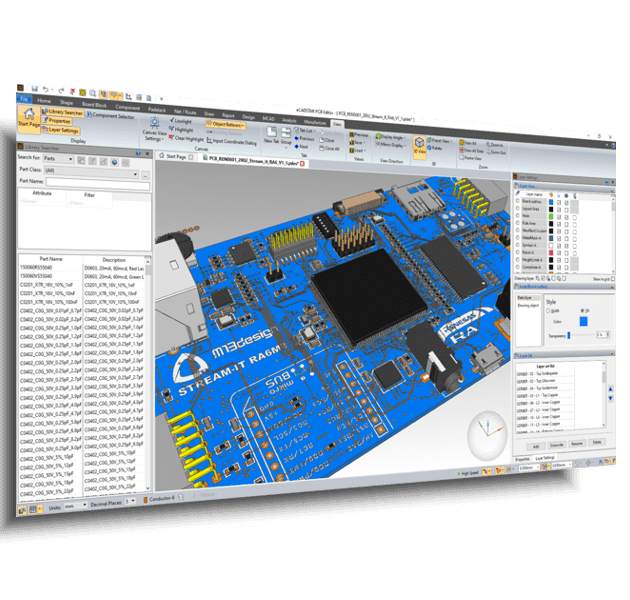

  • 3D modelling post layout (In step and pdf format)
3D Model & STEP File
