Renesas RZ/A1LU Evaluation Board | Stream It!
ARM Cortex-A9 @ 400 MHz

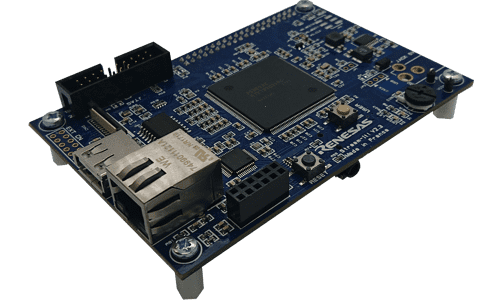

M13design STREAM-IT-RZ-EKV2 is our first evaluation and development platform for Renesas Electronics based on their RZ/A1LU Cortex®-A9 R7S721031VLFP microprocessor and solded since 2016 through Renesas distribution network. The full range of the hardware features on the board helps users to quickly evaluate all the available peripherals (10/100-Mbit Ethernet, microSD™ card, USB host/device, Audio codec with 4-pole Jack, SDRAM, Dual Quad-SPI Flash memory, 4.3-inch colour LCD-TFT with capacitive touch panel, and many others) and to develop their custom applications.

Main Features

MPU

  • Renesas RZ/A1LU MPU | R7S721031VLFP
  • ARM Cortex-A9 Core @ 400 MHz
  • 208-pins, 0.5mm-pitch QFP package
  • 3 Mbyte Internal RAM

MEMORY

  • 32 Mbyte External SDRAM
  • 64 Mbyte External Serial Flash x 2
  • 16 Kbit I2C EEPROM
  • microSD card Interface

GRAPHICS & CAMERA

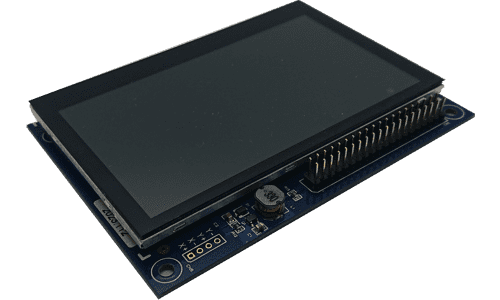

  • 4.3-inch 480x272 TFT LCD
  • Capacitive Touch Panel
  • 8/10-bit Camera Interface

COMMUNICATION

  • Ethernet (RMII and PHY)
  • 2 x USB Connector (Host/Device)

DEBUG

  • ARM JTAG 20-pin Debug Connector

OTHER FEATURES

  • Audio Codec with 4 pole 3.5mm Headphone Connector
  • 3-axis Accelerometer
  • 1 x User LED
  • 1 x Power LED
  • 2 x User Switch
  • 1 x Reset Switch

EXPANSION

  • 1 x Digilent PMOD™ Interface

Kit Content

  • STREAM-IT-RZ-V2 main board
  • Touch/TFT module (4.3-inch)
  • Camera module (TD7740, VGA 640x480, 30 fps)
  • JTAG on-chip debugger
  • Quick Start Guide, User manual, Demo applications

Ordering Information

Part NumberDescriptionBuy
YSTREAM-IT-RZ-V2Stream It! RZ MPU Evaluation BoardRenesas Website

Documents

Document TitleDescriptionFormatSizeDate
M13-STREAM-IT-EKV2 SchematicSchematicPDF331 KBJan. 1, 2018
M13-STREAM-IT-EKV2 PCB LayoutPCB LayoutPDF863 KBOct. 11, 2017
M13-STREAM-IT-EKV2 BOMBill of MaterialXLSX18 KBJun. 05, 2018

Software

Document TitleDescriptionFormatSizeDate
RZ/A1LU Software Package(1)SoftwareZIP176 MBNov. 29, 2019
RZ/A1LU Software Package AN(1)Application NotePDF157 KBNov. 29, 2019
Web Server demo(1)SoftwareZIP8.44 MBJan. 25, 2018
Web Server demo AN(1)Application NotePDF2.01 MBJan. 25, 2018
Graphics Demonstration(1)SoftwareZIP8.44 MBMar. 20, 2017
Graphics Demonstration AN(1)Application NotePDF3.47 MBMar. 20, 2017

(1)You must have an account and be logged in at Renesas before downloading

Hardware Partners

CompanyTypeReference
RenesasMCU & MPU, Power deviceRenesas provides for the M13-STREAM-IT-RZ-V2 board the R7S721031VLFP (RZ/A1LU Cortex-A9 MPU) and the DC/DC device RAA230231 for generating the 3.3V, 1.8V power rails. Renesas also provides the Ethernet PHY UPD60610GA-GAM-M1-AX and the R5F10JBCAFP for the UART/USB Feature.
Wurth ElectronikConnectorsWurth Elektronik provides most of the connectors on the M13-STREAM-IT-RZ-V2 board as listed thereafter : The USB connectors, the RJ45, the SD Card, all the FFC/FPC connectors and all the male and female pinheaders.

NDK

Crytal/OscillatorsNDK is our partner providing all the crystals and oscillator on our board. (32kHz, 12MHz, 13.3MHz, 22.5792MHz, 25MHz, 27Mhz and 48MHz).

Macronix

Memory DevicesMacronix provides the Serial Flash memory MX25L51245GMI-08G in SO8 Package.

Winbond

Memory DevicesWinbond provides the 256Mb SDRAM W9825G6KH-6I in TSOP54 Package.

On Semicondutor

Memory, Power Management, Protection DevicesOnSemicondutor provides the EEPROM, Power switch, ESD protection and the Reset monitor.

Software Partners

CompanyTypeReference
Oryx EmbeddedTCP/IP stack, SSL/TLS & SSH encryptionOryx Embedded offers a complete range of networking solutions for embedded systems, making the Internet of Things a reality. Their portfolio includes professional-grade TCP/IP components as well as SSL/TLS & SSH encryption to make your communications safe and secure.
