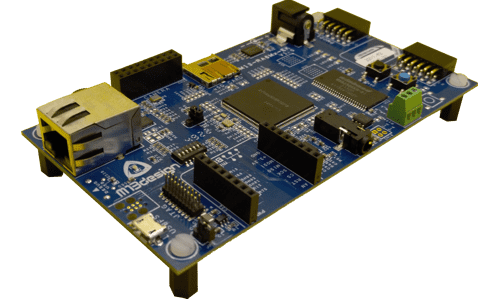

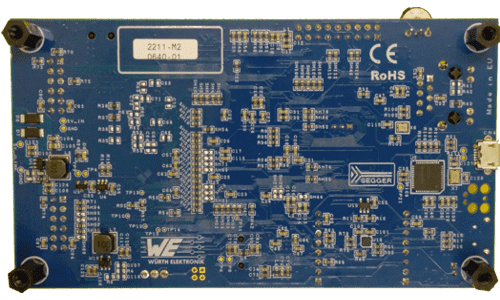

RA6M2 Evaluation Board
ARM Cortex-M4 @ 120 MHz

The M13-RA6M2-EK is a complete evaluation and development platform for the Renesas Electronics® based RA6M2 Cortex®-M4 R7FA6M2AF3CFB microcontroller. The many hardware features on the board helps users to quickly evaluate all the available peripherals (10/100-Mbit Ethernet, microSD™ card, USB host/device, Audio codec with 4-pole Jack, Quad-SPI Flash memory, and many others) and to develop their custom applications. PMOD™ and Mikrobus™ connectors make it possible to easily extent the boards features (Sensors, communication and network modules and many more). The integrated JLink-OB debug probe provides in-circuit debug and programming for the RA6M2 device and also a built-in VCOM functionality.

Main Features

MCU

  • RA6M2 MCU | R7FA6M2AF3CFB
  • ARM Cortex-M4 Core @ 120 MHz
  • LQFP144 Package
  • 1 MByte Code Flash, 384 KByte SRAM
  • Secure Crypto Engine (SCE7)

MEMORY / STORAGE

  • 32 MByte SDRAM
  • 32 MByte External QSPI Flash
  • 16 Kbit I2C EEPROM
  • microSD Interface

GRAPHICS & CAMERA

  • 8/10-bit Camera Interface

COMMUNICATION

  • Ethernet (RMII and PHY)
  • USB 2.0 Full-Speed (Host/Device)
  • CAN-FD

DEBUG

  • Onboard Debugger J-Link-OB™ (SWD/JTAG)
  • Virtual COM Port

OTHER FEATURES

  • Audio Codec with 4 pole 3.5mm Headphone Connector
  • 3-axis Accelerometer
  • 4 x User LEDs
  • 2 x User Switch
  • 1 x Reset Switch

EXPANSION

  • 2 x Digilent PMOD™ Interface
  • 1 x Mikrobus™ Interface

Ordering Information

Part Number Description In Stock Unit Price Buy
M13-RA6M2-EK RA6M2 Evaluation Kit Q2/Q3 2022 169.00 EUR Contact us

All sales related inquiries (webshop, custom quotation) are handled by our sales partner Cynetis Embedded.

Documents

Document Title Description Format Size Date
M13-RA6M2-EK Datasheet Datasheet PDF 394 KB Dec. 17 2021
M13-RA6M2-EK User Manual User Manual PDF 0 KB Coming soon!
M13-RA6M2-EK Schematic Schematic PDF 0 KB Coming soon!
M13-RA6M2-EK PCB Layout PCB Layout PDF 0 KB Coming soon!
M13-RA6M2-EK BOM Bill of Material XLSX 0 KB Coming soon!
